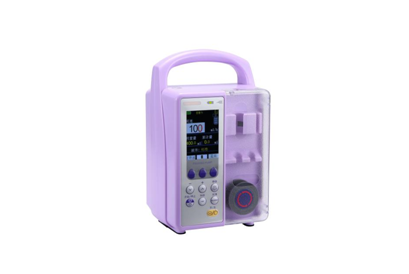

CNIP800 infusion pump

Model

CNIP800

IV sets

Standard IV sals of 20,60d/ml, with diameter 3.4-4.5mm

Infusion modes

volumetric

Infusion accuracy

≦±5%(after calibration)

Drip-rate range

20d/ml IV sets:1-400d/min,60d/ml IV sets:1-150d/min

Flow rate

0.1-120ml/hr

Volume to be infused (VTBL)

0.1-9999ml

Purge rate

600ml/hr

Bolus

Default 300ml/h with volume 3ml, values adjustable

KVO

0.1-10ml/hr

Bubble detection

Ultrasonic with 3-level sensitivities setting.50-300ul

Occusion alarm

3 sensitivities setting

Audio & visual alarm

Bubbles, door open, finished, pause overtime, leakage, empty, battery low, motor reverse, inccorrect parameters setting, motor failure, abnormal drip sensor, ocdusion, AC lost etc.

Display

3.2in TFT

Power source

≦15W, 85V-265V, 50Hz/60Hz

battery

DC 12V, 2000mAh(last 4 hours at 25ml/hr after fully recharged)

Operation condition

Temperature: +5℃-+40℃,relative humidity≦80%,atmospheric pressure 70kpa-106kpa

dimensions

167x125x115mm

weight

1.8kg
