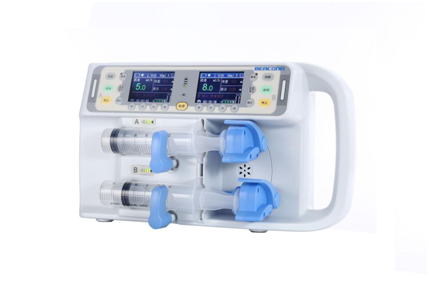

CNSP900D syringe pump

Model

CNSP900D

Applicable syringes

5ml, 10ml, 20ml, 30ml, 50ml/60ml

Flow rate

5ml: 0.1-150ml/h
10ml: 0.1-300ml/h
20ml: 0.1-400ml/h
30ml: 0.1-600ml/h
50ml: 0.1-1200ml/h

Flow rate step

0.1ml/h

Flow rate accuracy

≤±2%(including machanic accuracy ±1%)

Volume limit

0.1-9999.9ml

Purge rate

5ml: 150ml
10ml: 300ml
20ml: 400ml
30ml: 600ml
50ml: 1200ml

Bolus rate

5ml: 10-150ml/h
10ml: 100-300ml/h
20ml: 100-400ml/h
30ml: 100-600ml/h
50ml: 100-1200ml/h

Syringe modes

Flow rate, time&volume, drug/weight, bolus.

KVO

0.1-5ml/h

Occlusion alarm

3-level sensitivities setting

Audio & visual alarm

Finished, barrel dasp, plunger head, pause overtime, near empty, empty, battery low, battery run out, motor reverse, incorrect parameters setting, system failure, occlusion, AC lost etc.

Drug library

upgradable

Wireless monitoring

upgradable

Display

Two 2.8In TFT

Power source

≤25W, 85-265V, 50Hz/60Hz

Battery

DC12V, 2000mAh(double chunnel last 4hours at 5ml/h after fully recharged)

Operation condition

Temperature: +5℃-+40℃, relative humidity≤80%, atmospheric pressure 70kpa-106kpa

Dimensions

356x192x134mm

weight

3.2kg
