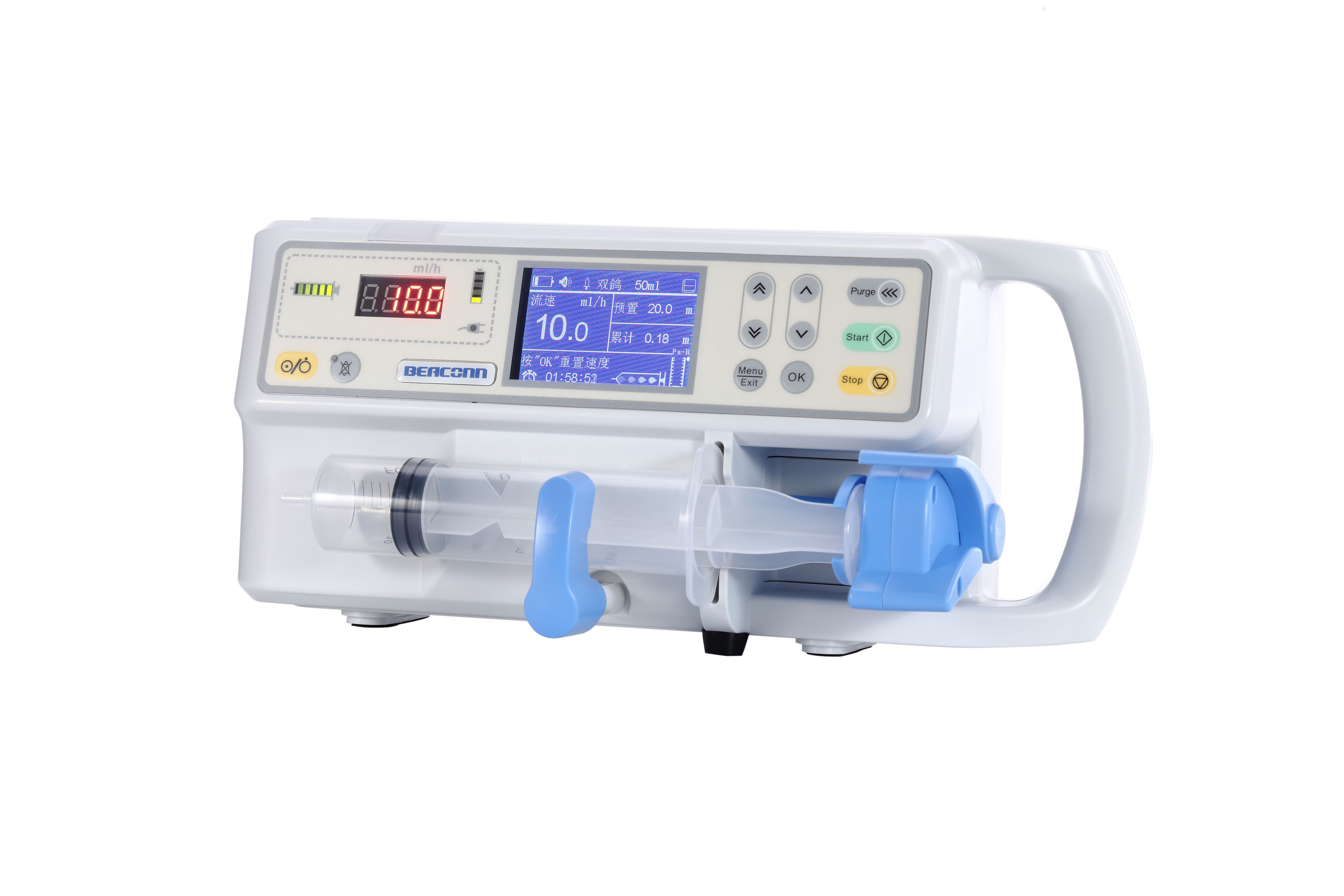

CNSP900B syringe pump

Model

CNSP900B

Applicable syringes

5ml, 10ml, 20ml, 30ml, 50ml/60ml

Flow rate

5ml: 0.1-150ml/h
10ml: 0.1-300ml/h
20ml: 0.1-400ml/h
30ml: 0.1-600ml/h
50ml: 0.1-1200ml/h

Flow rate step

0.1ml/h(0.1-100ml/h micro mode)

Volume limit

0.1-9999.9ml

Purge rate

5ml: 150ml
10ml: 300ml
20ml: 400ml
30ml: 600ml
50ml: 1200ml

Bolus rate

5ml: 10-150ml/h
10ml: 100-300ml/h
20ml: 100-400ml/h
30ml: 100-600ml/h
50ml: 100-1200ml/h

Syringe modes

Flow rate, time&volume, drug/weight

Bolus

Automatic bolus & manual bolus

KVO

0.1-5ml/h

Occlusion alarm

3-level sensitivities setting

Audio & visual alarm

Finished, check syringe, drice disengaged, pause overtime, near empty, battery low, battery run out, malfunction, system failure, occlusion, AC lost etc.

Display

2.8monochrome LCD

Power source

≤15W, 85-265V, 50Hz/60Hz

Battery

DC12V, 2000mAh(last 7hours or up at 5ml/h after fully recharged)

Operation condition

Temperature: +5℃-+40℃, relative humidity≤80%, atmospheric pressure 70kpa-106kpa

Dimensions

305x130x108mm

weight

1.9kg
