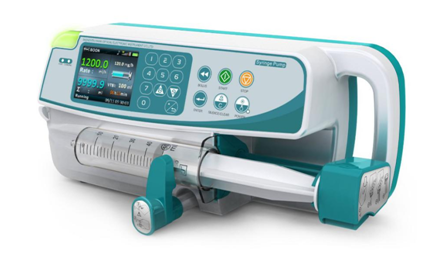

CNSP403 syringe pump

Model

CNSP403

Applicable syringes

Various brands of syringes: 2ml, 5ml, 10ml, 20ml,30ml,50ml/60ml

Accuracy

±2%(mechanical±1%)

injection rate

5ml: 0.1-150ml/h
10ml: 0.1-300ml/h
20ml: 0.1-600ml/h
30ml: 0.1-900ml/h
50ml: 0.1-1500ml/h

Bolus rate

5ml: 100-150ml/h
10ml: 100-300ml/h
20ml: 100-600ml/h
30ml: 100-900ml/h
50ml:100-1500ml/h

Bolus volume limit

1-999ml/h

Purge rate

5ml: 150ml
10ml: 300ml
20ml: 600ml
30ml: 900ml
50ml: 1500ml

KVO rate

0.1-2ml/h

Volume to be infused(VTBI)

0.1ml-1000ml

Injection
increment

0.1ml

Infusion mode

Various infusion modes

Time mode

Volume limit: 0.1-999.9ml
Pre-set time: 1min to 99h99min
Remaining time: **h**min

Body weight mode

Drug limit: 0.1-999.9mg,
solution limit 0.1-999.9ml,
patient weight: 0.1-300.0kg,
Dose: 0.1-9999.9mg/kg/h, Ug/kg/min

Occlusion pressure

3adjustable occlusion pressure setting: low, middle and high

Alarm function

Infusion completion, near completion, empty, occlusion, start reminder, low battery, syringe disengaged, incorrect installation of syring plunger, No AC power supply, low battery, battery exhausted, malfunction etc.

Battery

Rechargeable lithium polymer battery, 7.4V, 2100mAh
Can operate for up to 8hours at  5ml/h.

Battery recharge time

10h with power on, 3h wight power off

Power consumption

25VA

Classification

Class I, type CF

Waterproof level

IPx3

Dimensions

230x137x139mm

weight

1.7kg

Operating conditions

Temperature: 5℃-40℃,
relatice humidity: 10-95%,
Atmosphere pressure: 86-106kpa

Transport conditions

Temperature: -20℃-+60℃,
Relatice humidity: 10-95%,
Atmosphere pressure: 50-106kpa

Storage conditions

Temperature: -20℃-+45℃,
Relatice humidity: 10-95%,
Atmosphere pressure: 50-106kpa
