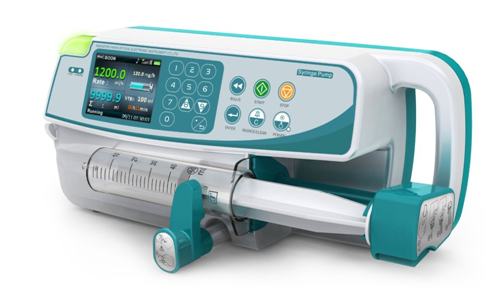

CNSP402 syringe pump

Model

CNSP402

Applicable syringes

Various brands of syringes: 10ml, 20ml, 30ml, 50ml/60ml

Accuracy

±2%(mechanical±1%)

Flow rate

10ml: 0.1-300ml/h
20ml: 0.1-600ml/h
30ml: 0.1-900ml/h
50ml: 0.1-1500ml/h

Bolus rate

10ml: 100-300ml/h(default 300ml/h)
20ml: 100-600ml/h(default 600ml/h)
30ml: 100-900ml/h(default 900ml/h)
50ml: 100-1500ml/h(default 1500ml/h)

Purge rate

10ml: 300ml
20ml: 600ml
30ml: 900ml
50ml: 1500ml

Volume to be infused(VTBI)

0.1ml-1000ml

Injection
increment

0.1ml

Infusion mode

Rate mode, time mode

Time mode

Volume limit: 0.1-999.9ml
Pre-set time: 1min to 99h99min
Remaining time: **h**min

Occlusion pressure

3adjustable occlusion pressure setting: low, middle and high

Alarm function

Infusion completion, near completion, empty, occlusion, low battery, syringe disengaged, incorrect installation of syring plunger, No AC power supply, low battery, battery exhausted, malfunction etc.

Battery

Rechargeable lithium polymer battery, 7.4V, 2100mAh
Can operate for more than 3 hours after fully charged at 25ml/h.

Dimensions

300x129x130mm

weight

2kg
